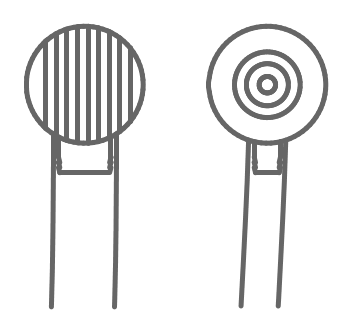

U-50 Ultra Reef charge and drain system is an innovative and

modular solution that offer infinite composition, high performance

and silent running. The modular system allows you to compose

your own system using a single drilling diameter in the glass,

making it possible to swap the charge and discharge at any time.

U50

Silicon O-ring sealing

Our system uses a sealing system made with silicone O-ring gaskets. This

solution allows waterproof sealing without the need to tighten the components,

avoiding dangerous forces on the glass plate. Moreover, having the thread made

on the screwed components inside the tank, it will be possible to remove the

system without having to move the aquarium if it is mounted close to a wall.

Recommended combinations:

Aquarium up to 300 lit (80 US gal): 1x U50 OUT, 1x U50 IN

Aquarium up to 500 lit (130 US gal): 2x U50 OUT, 1x U50 IN

Aquarium up to 700 lit (180 US gal): 2x U50 OUT, 2x U50 IN

Aquarium up to 900 lit (240 US gal): 3x U50 OUT, 2x U50 IN

Glass

Hole on glass 53…60 mm Glass thickness 0-24 mm

Performance

Recommended pump 6500 lit/h

Hoses

Hose connection Ø25 mm Hose length 2 mt Includes hose and s.steel clamp

MSRP

Suggested price 99.00 € (22% VAT included)

U50

IN system

U50

OUT system

Glass

Hole on glass 53…60 mm Glass thickness 0-24 mm

Performance

Estimated flow 1000-1500 lit/h

Hoses

Hose connection Ø50 mm Hose length 2 mt Includes hose and s.steel clamp

MSRP

Suggested price 99.00 € (22% VAT included)

BOREI

Skimmer

AKULA

Skimmer

TYPHOON

Skimmer

MODULA

Filter

U50

In & Out

ULTRA REEF

by Ultra Pompe S.r.l. Via Goldoni 37 20090 Trezzano sul Naviglio (Milano - Italia) P.IVA 00210510152

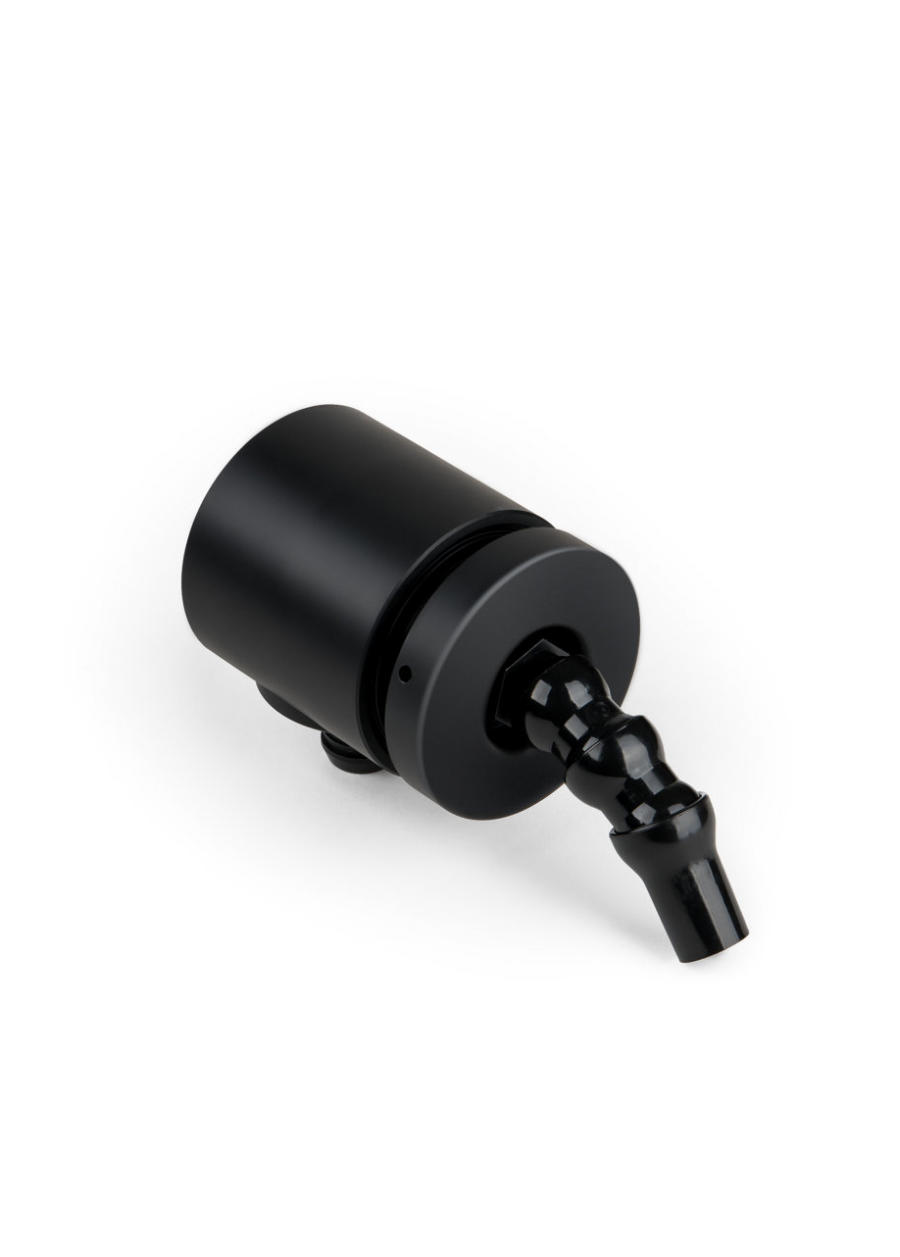

U50 IN system

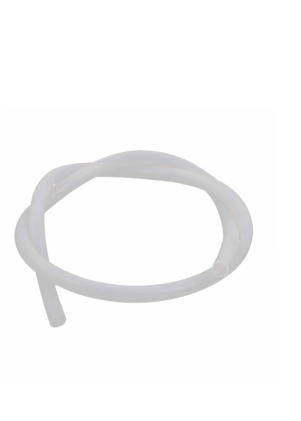

The Ultra Reef charge system is equipped with nozzle on spherical support with

adjustable attachment which can be rotated and bent at will. The soft silicon hose

has been selected to connect the loading water system of an aquarium tank to its

return pump positioned in the technical tank (pressure lower than 0.2 bar). Hose

is included.

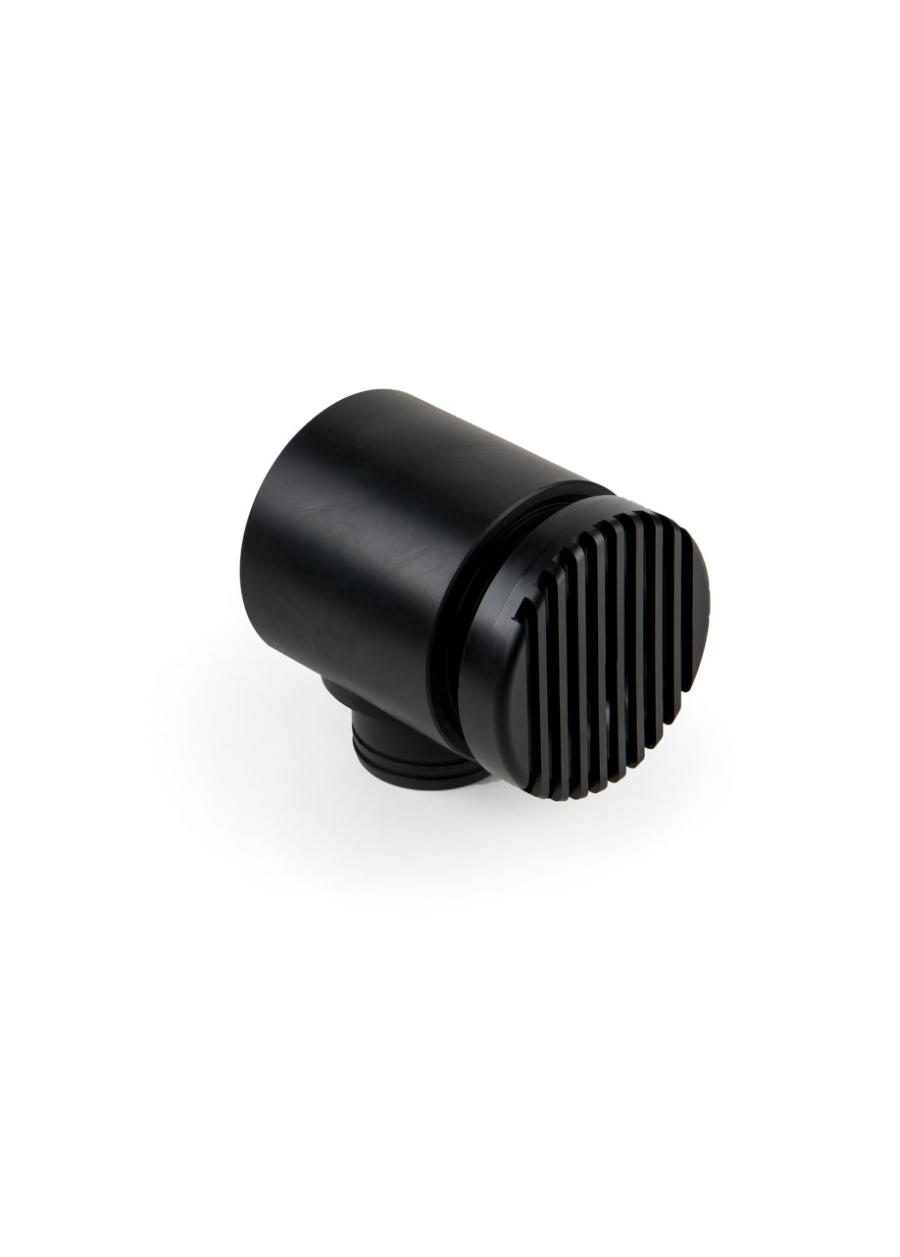

U50 OUT system

The drain system is equipped with removable grid to facilitate cleaning

operations. The increased size of the grid help the flow of water ensuring flow

rate and silent running, while side openings prevent it from being completely

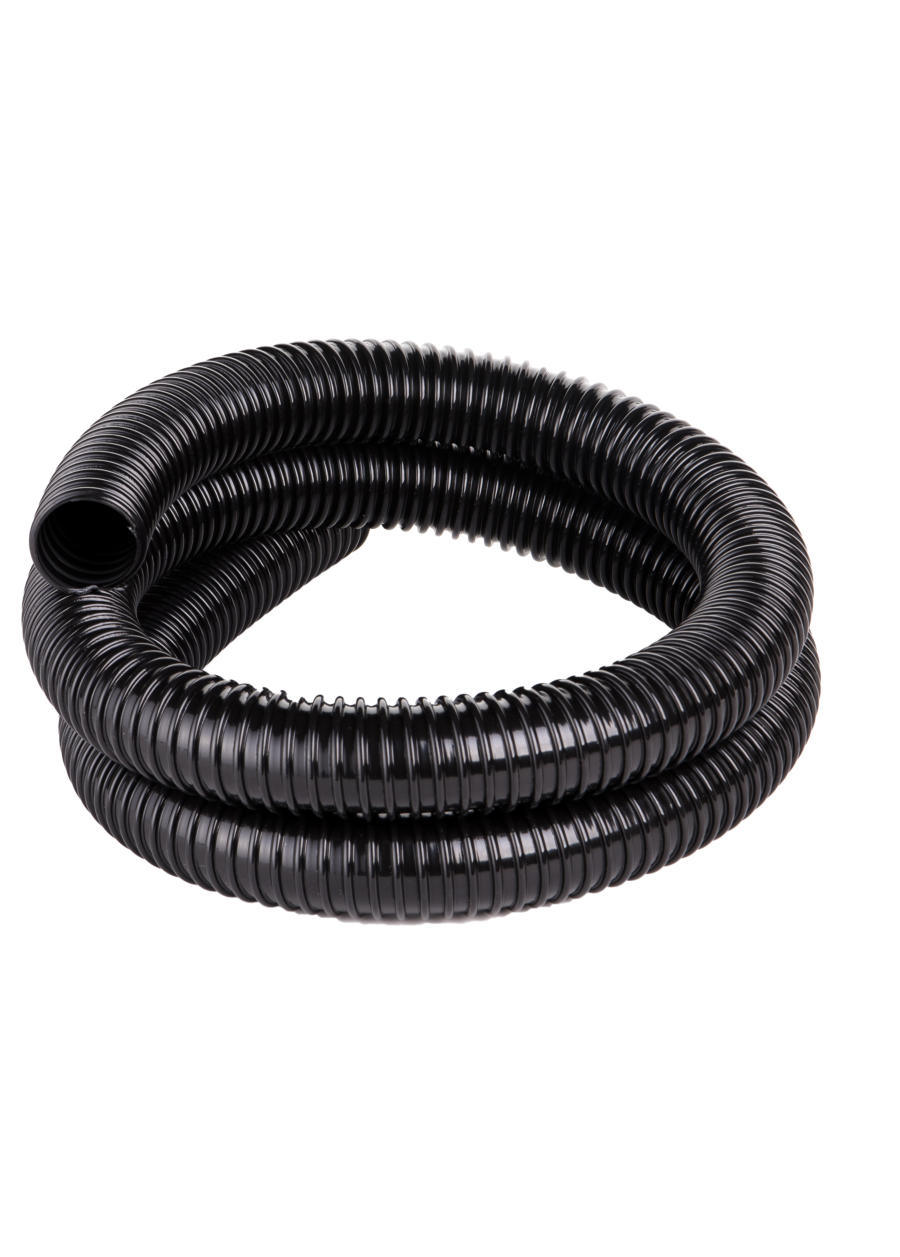

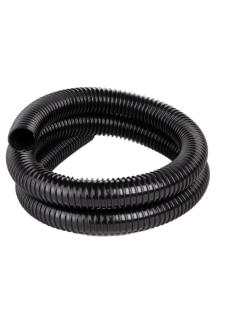

occluded from flat objects. The flexible hose is our proposal to make a drain

system as silent as possible. The soft material with which it is made reduces

noise and vibrations while the hard plastic spiral allows reallocation of sweet

curves without the hose becoming shrinking. Hose is included.
