Gli schiumatoi Ultra Reef serie TYPHOON sono una gamma di

schiumatoi interni ad elevate prestazioni pensati per la gestione di

acquari di grandi dimensioni. Sono alimentati con pompe ad alta

capacità con controller elettronico per variare la velocità di

funzionamento e regolare la capacità di estrazione dello

schiumatoio.

TYPHOON

Innovation and control

Our skimmers are equipped with the latest generation Sicce DC pumps with

needle impellers. The pumps are equipped with a controller for adjusting the

speed and wattage of the pump for additional tuning. Ultra Reef has designed a

plug-in venturi that mix large volumes of air and water within the skimmer

creating a concentrated layer of foam with a high filtering capacity. Our venturi

design is equipped with a simple self-cleaning system that prevents the

accumulation of saline deposits inside the injector.

Progressive regulation

Fine tuning is easy with the the precise and intuitive adjustment system.

Extraction capacity is adjusted by turning a simple knob that activates a screw

opening and closing system. This allows the nutrient content and water quality to

be kept at optimum levels, ensuring stability even in new aquariums with

extraneously low organic content.

Noiseless

Ultra Reef skimmers have an integrated silencer that minimizes the skimmer

noise making it virtually silent. The exhaust system is submerged in the base of

the skimmer for silent operation as the clean water is discharged back into the

tank. Rubber feet are installed under the base to absorb all vibrations and avoid

annoying resonances.

How it works?

The Ultra Reef range of protein skimmers are designed to filter

aquariums by removing the surfactants from seawater. It pumps a

mixture of Aquarium water and air bubbles into a mixing chamber.

By exploiting the properties of the film surface tension between air

and water. It generates a dense foam that moves upward into the

collection cup where it can be easily removed and cleaned out as

necessitates.

To be installed in sump, water level ~ 22 cm (8-9 in).

Aquarium size

Minimum 500 lit (130 US gal) Maximum 1500 lit (400 US gal)

Performance

Pump Sicce PSK-SDC 2600 Air intake ~ 300-1400 lit/h Water intake ~ 700-2300 lit/h

Power supply

Absorbed power ~ 10-36 W Power supply DC 24V 50/60H. Plug EU+US

Dimensions

Base 39x29 cm Height 60cm

MSRP

Suggested price 1019.00 € (22% VAT included)

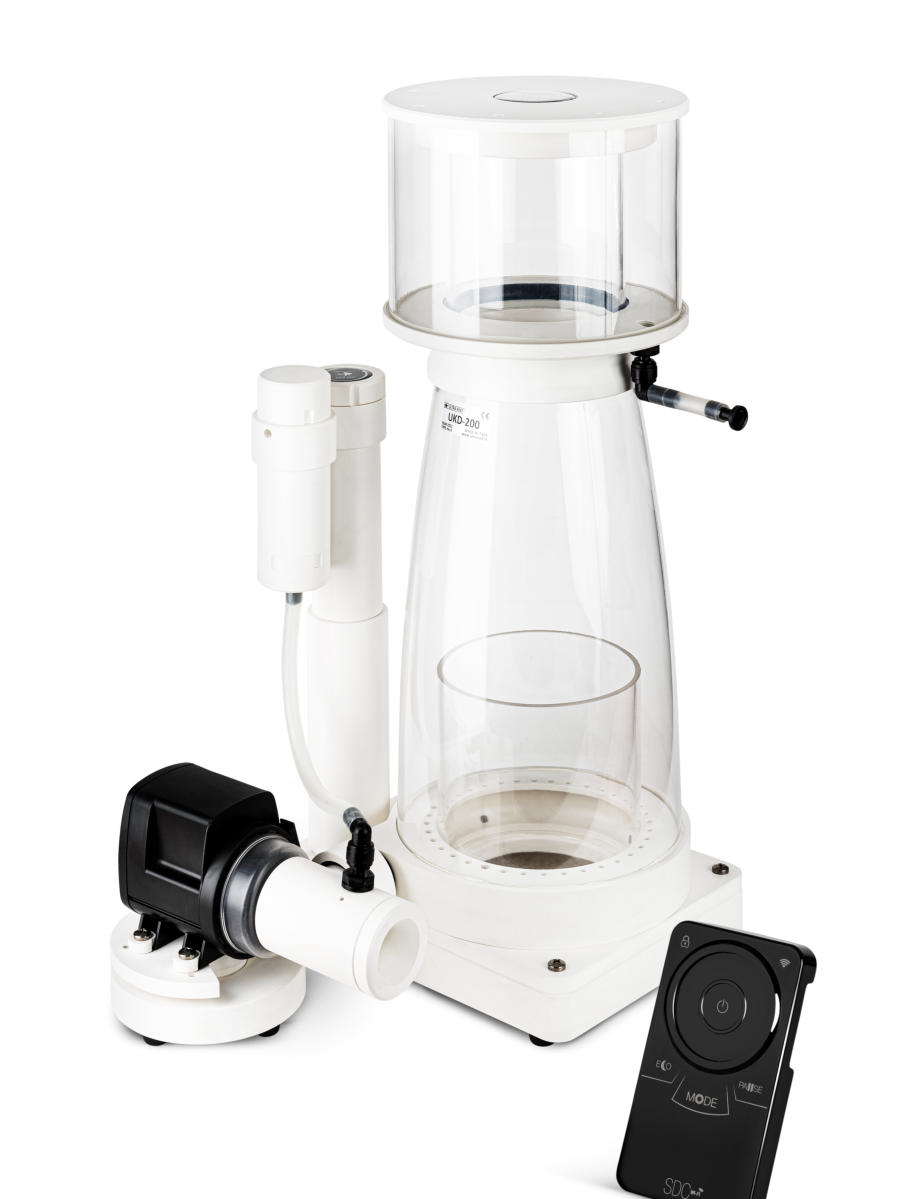

TYPHOON

UKD-200

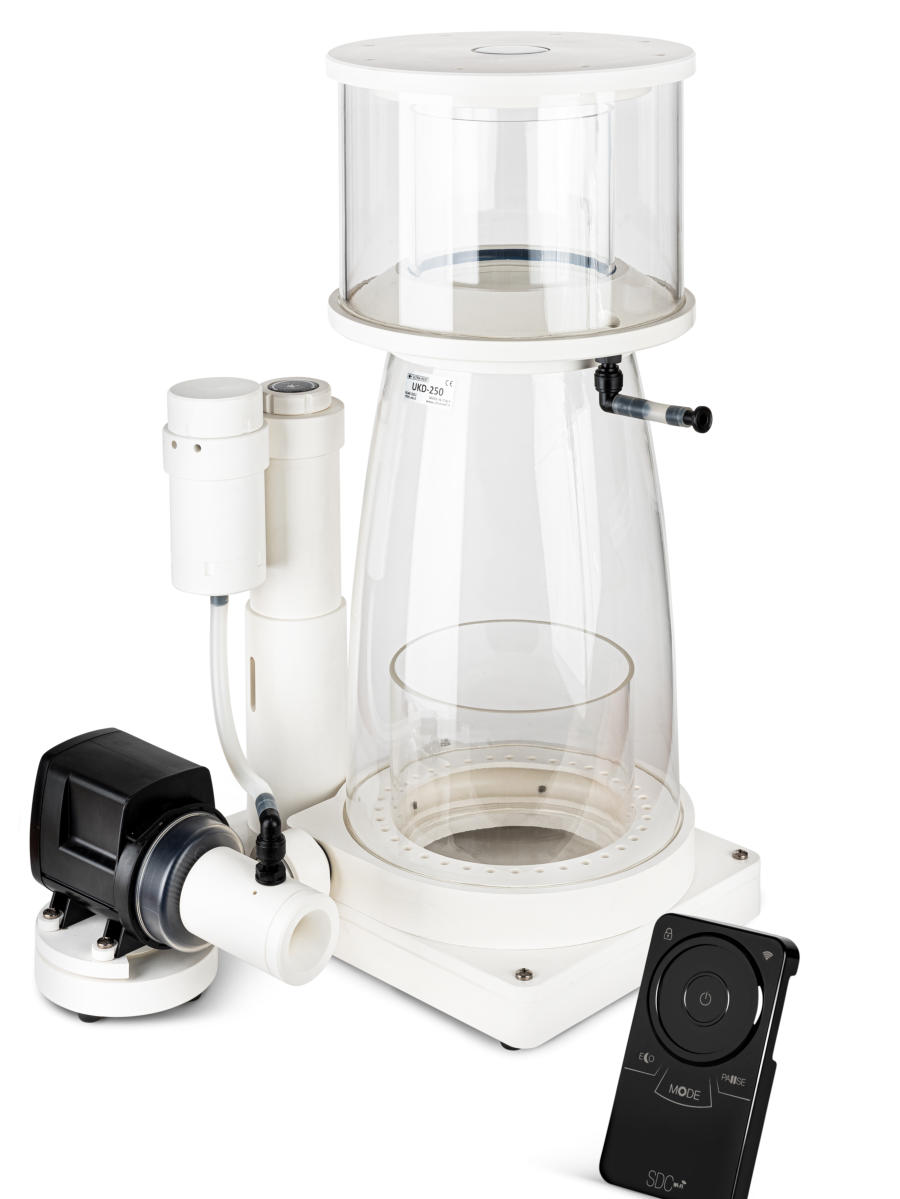

TYPHOON

UKD-250

Aquarium size

Minimum 600 lit (160 US gal) Maximum 2000 lit (530 US gal)

Performance

Pump Sicce PSK-SDC 4000 Air intake ~ 500-2300 lit/h Water intake ~ 2600-3000 lit/h

Power supply

Absorbed power ~ 16-58 W Power supply DC 24V 50/60H. Plug EU+US

Dimensions

Base 45x35 cm Height 65 cm

MSRP

Suggested price 1339.00 € (22% VAT included)
